Introducing POWEVER's hot-star A1 Servo Motors for PVC high speed door application

Introducing POWEVER's hot-star A1 Serve Motors for PVC high speed door application

In the rapidly evolving industrial automation sector, precision, and adaptability are critical for high-performance equipment. POWEVER Motor a leader in intelligent control technology, addresses these demands with its A1 series serve motors, specifically engineered for PVC high-speed doors. Designed to enhance operational efficiency in logistics, manufacturing, and warehousing environments, these motors combine cutting-edge technology with robust construction. This article explores the technical specifications and features of two standout models: the A1 0.75KW, A1 1.5KW and A1 2.2 KW serve motors, with their compatible controllers and drive units.

Product Overview

POWEVER's A1 series serve motors are designed for high-speed PVC doors, ensuring smooth operation, rapid response, and energy efficiency. These motors support both electronic and mechanical braking systems, offering flexibility for diverse industrial applications. The 0.75KW and 1.5KW models cater to different power requirements, making them ideal for plant ranging from small warehouses to large-scale distribution centers.


Technical Specifications & Performance

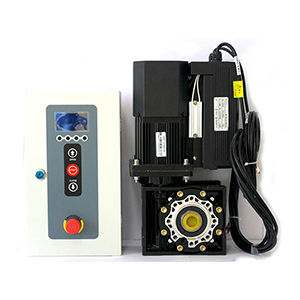

A1 0.75KW serve Motor

Controller (PE510):
Compact yet powerful, the PE210 controller delivers a rated output of 0.75KW and operates at 3,000 RPM, generating 2.39 Nm torque. Its compact dimensions (317x110x215 mm) and IP54-rated enclosure ensure durability in harsh environments. The integrated absolute encoder provides precise positioning, while the electro-mechanical brake guarantees immediate stopping power. A manual release handle adds redundancy for safety during power outages.


Drive Unit (DC4-1):
The DC4-1 drive unit complements the motor with a 1.5KW rated output and 24VDC external power compatibility. Its SPCC steel enclosure (320x140x140 mm) and vertical installation design minimize vibration, enhancing stability. Operating within a temperature range of −10°C to 50°C, this unit is built for longevity in indoor settings free from corrosive elements.

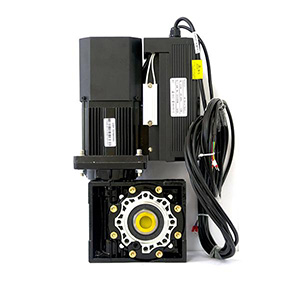

A1 1.5KW serve Motor

Controller (PE510):
Engineered for heavier loads, the PES10 controller offers 1.5KW output power and 4.78 Nm torque at 3,000 RPM. Its larger footprint (442x130x228 mm) accommodates enhanced heat dissipation, critical for sustained high-speed operation. Like the PE210, it features an absolute encoder, electro-mechanical brake, and IP54 protection, ensuring reliability in demanding conditions.

Drive Unit (DC4-2):
The DC4-2 unit mirrors the DC4-1’s robust SPCC construction but scales up to 340x195x128 mm for improved heat management. With identical power specifications and environmental tolerances, it supports seamless integration into systems requiring higher torque and extended duty cycles.


Advanced Features

Absolute Encoder Technology:
Both controllers utilize absolute encoders for real-time positional accuracy, eliminating the need for homing sequences and reducing downtime during door cycles.

Electro-Mechanical Braking System:
This dual-mode braking ensures rapid deceleration and fail-safe operation, critical for high-traffic environments where safety is paramount.

Environmental Resilience:
With IP54 protection, wide temperature ranges (−25°C to +55°C storage), and humidity tolerance (30–85% non-condensing), these motors excel in diverse climates and industrial settings.

Compact & Modular Design:
The vertical installation capability and lightweight drive units (1.6–2.3 kg) simplify integration into existing systems while saving valuable floor space.


Applications & Industry Advantages

POWEVER’s A1 series is ideal for:

Logistics Hubs: Ensures rapid door cycling for forklifts and automated guided vehicles (AGVs).

Cold Storage Facilities: Performs reliably in sub-zero temperatures, maintaining energy-efficient operation.

Manufacturing Plants: Reduces mechanical wear through precise speed control and minimal vibration.

By minimizing energy consumption and maintenance costs, these motors offer a compelling ROI for businesses prioritizing operational uptime.


Why Choose POWEVER?

POWEVER combines decades of expertise with stringent quality control. Their motors adhere to global standards, backed by responsive customer service and technical support. The inclusion of detailed installation guidelines and environmental specifications further underscores their commitment to user-centric design.


Conclusion

POWEVER’s A1 0.75KW and 1.5KW serve motors represent the pinnacle of innovation for PVC high-speed door systems. By balancing power, precision, and durability, these solutions empower industries to achieve faster throughput, enhanced safety, and reduced operational costs. For businesses seeking reliable automation partners, POWEVER stands ready to deliver cutting-edge technology tailored to modern challenges.

Contact POWEVER Today:
Explore our product range on https://www.highspeeddoor.cn/PE210-PE510-A1-Series.html.
