General data
|
|
|
Type |

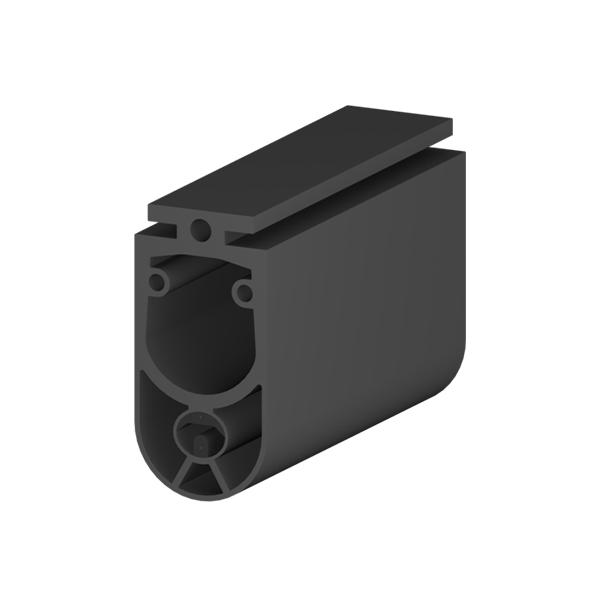

SENTIR edge 25.45 TT 1 End edge with 2,5 m connection cable and internal resistor (excl. aluminium mounting profile AL). For other versions of connection cable, please free to contact us. The total costs for a pre-made contact edge consist of a base price and a price per m. |
|
Weight kg/m |
0,44 |
|
Protection class |
IP 65 (optional IP 68) |
|
Operating temperature |
-10/+50°C |
|
Max. series connection |
5 contact edges |
|
Finger protection |
0°C/+50°C |
|
Electrical cicuitry |
24 V 10 mA |
|
Mounting base |
T-base |
|
Article number |
1502-0691 |
|
Dimensions |
W 25 mm x H 45 mm |
|
Max. delivery length |
30 m |
|
Measurements and value figues at 100 mm/s |
Actuating force* 53,9 N Pre-travel* 7,7 mm Overtravel to 250 N* 19,9 mm Overtravel to 400 N* 22,7 mm Overtravel to 600 N* 24,8 mm |
