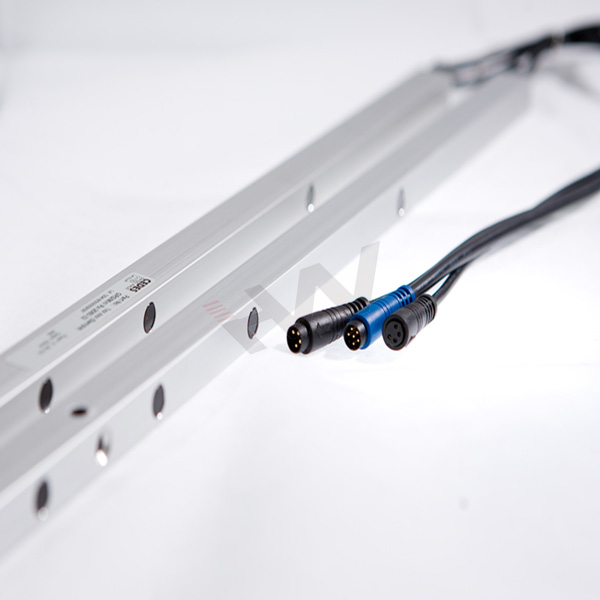

CEDES Light Curtain GridScan / Mini-1830

Dimension diagram

Technical sheet

Optical
Operating range	1~10m
Number of elements	40
Max. ambient light	100,000 Lux
Aperture angle at 3 m	Tx: ≤ ±10° and Rx: ≤ ±20°
Mechanical
Cross-section	12 mm × 16 mm
Max. protection height	1,240 mm
Housing material	Natural anodized aluminum
Enclosure rating	IP67
Temperature range	−40 °C ... +60 °C
Electrical
Supply voltage USP	10 ... 30 VDC
Current consumption at 24 VDC	100 mA
Output	PNP/NPN (push-pull) or FSS
Output load	100 mA, 100 nF
Typ. response time with 32 elements	90 ms
Max. door speed	2.5 m/s
Status LED Rx: Object detected	red
No object detected	green
Power LED Tx: Power ok	green
General
EMC emission	EN 61000-6-3:2007
	EN 12015:2014
EMC immunity	EN 61000-6-2:2005
	EN 12016:2013
Vibration	IEC 60068-2-6:2007
Shock	IEC 60068-2-27:2008
RoHS	2011/65/EU
Certificates	CE, TÜV
Safety category	EN ISO 13849-1:2008, Cat. 2, PL D
	EN 61508:2010, SIL 2
	EN 12978:2009 (SB type,
	excl. IEC 61496-2:2006)
Applicable standards	UL 325:2012
Types
GridScan/Mini SB	With door blanking feature
	according to EN 12978:2009
GridScan/Mini DB	With door blanking feature
GridScan/Mini ST	For static applications without door
	blanking function
Connection cable and electrical connection
Length	10 m
Diameter	Ø 3.5 mm
Material	PVC, black
Plug color	Black
Wires	AWG26
• brown	USP
• blue	GND (0 V)
• black	Communication
• white	Test signal
Connection cable
Length	5 m
Diameter	Ø 4.2 mm
Material	PVC, black
Plug color	Blue
Wires	AWG26
• brown	USP
• blue	GND (0 V)
• black	Output 1 (PNP/NPN or FSS)
• white	Test input
• gray	Selectable output logic
• green	Not used or Output 2 (PNP/NPN)
