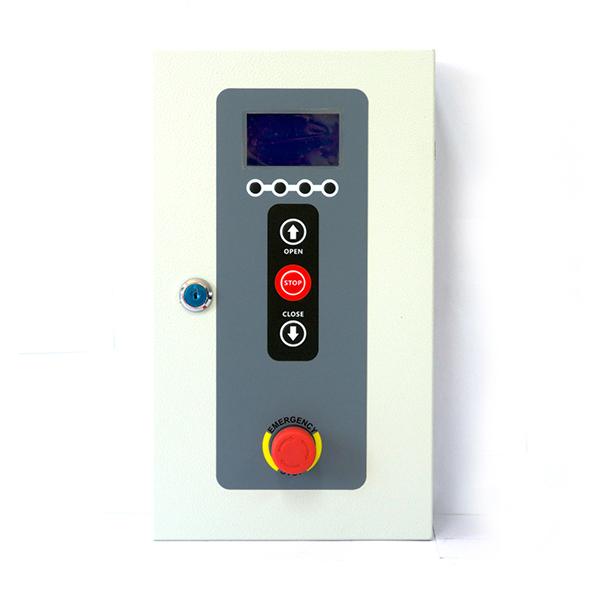

Specification for Controller: |
|
|
Model |
DC4-1 |
|
Enclosure material |
SPCC |
| Dimension(L*W*H) |
320mm x 140mm x 140mm |
|
Installation method |
Vertical installation without vibration |
|
Power supply |
1N~200-240V |
|
Power frequency |
50/60Hz |
|
Rate output power |
1.5KW |
|
External power supply |
24VDC 0.4A |
|
Ambient temperature |
-10℃～+50℃ |
|
Storage temperature |
-25℃～+55℃ |
|
Ambient humidity |
30%-85%, No condensation |
|
Place of use |
Indoor, no direct sunlight, no dust, corrosive gas, oil mist, water vater vapor, etc. |
|
Weight(net) |
1.6Kg |
|
Specification for Motor: |
|
| Model | PE210 |
|
Dimension(L*W*H) |
317mm × 110mm × 215mm |
|
Rate output power |
0.75KW |
|
Rated speed |
3000rpm |
|
Rated torque |
2.39Nm |
| Power supply |
1N~AC200-240V |
| Power frequency | 50/60Hz |
| Power current | 6.5A |
|
Ambient temperature |
-10℃～+40℃ ¹⁾ |
|
Storage temperature |
-25℃～+55℃ |
|
Ambient humidity |
30%-85%, No condensation |
|
IPdegree |
IP54 |
|
Limit mode |
Absolute encoder |
|
Self-locking mode |
Electro mechanical brake |
|
Manual release |
Handle |
|
Weight(net) |
8.0Kg ²⁾ |
1)When using a temperature range of -20~-10C and +40~+50°C use half ofrated power output.
2)Weight includes RV50 reducer.
3)Weight includes RV63 reducer.
