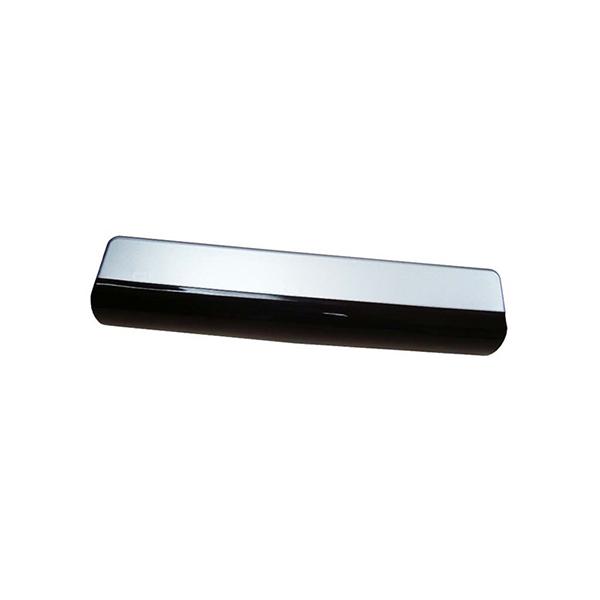

Product Description:
C8 is a dual technology sensor combining the microwave technology for the opening and
active infrared technology for the safety.
Technical Specifications:
Output
Max. Contact Voltage
relay (free of potential change-over contact)
42 V AC/DC
Technology
Microwave and Active infrared
Detection Mode
Motion and Presence
Transmitter Frequency
24.150 GHz
Transmitter Radiated Power
< 20 dBm EIRP
Transmitter Power Density
< 5 mW / cm²
Min.detection speed
5 cm/s (measured in optional conditions)
Max. Contact Current
Max. swithing power
30W(DC)/60 Va(AC)
Material
ABS
Supply Voltage
12 – 24 VAC ±10%; 12 – 30 VDC ±10%
Power Consumption
< 3 W
Mounting Height
from 1.8m to 3m
Temperature Range*
from -25℃ to +55℃
Degree of Protection
IP54
Cable Length
2.5m
Applications:
