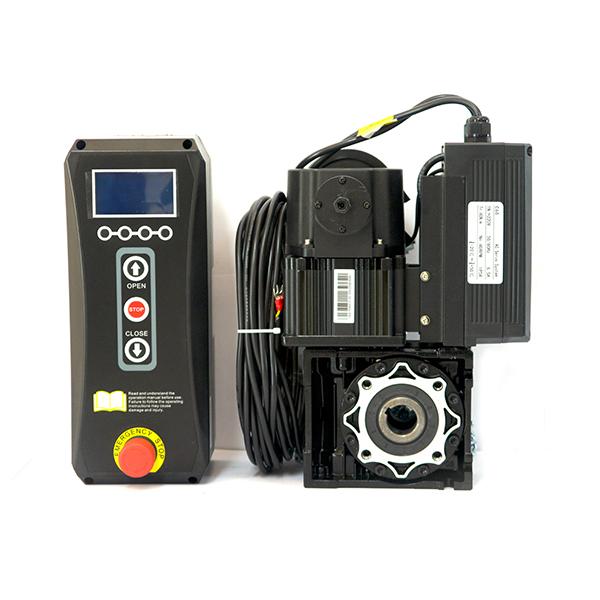

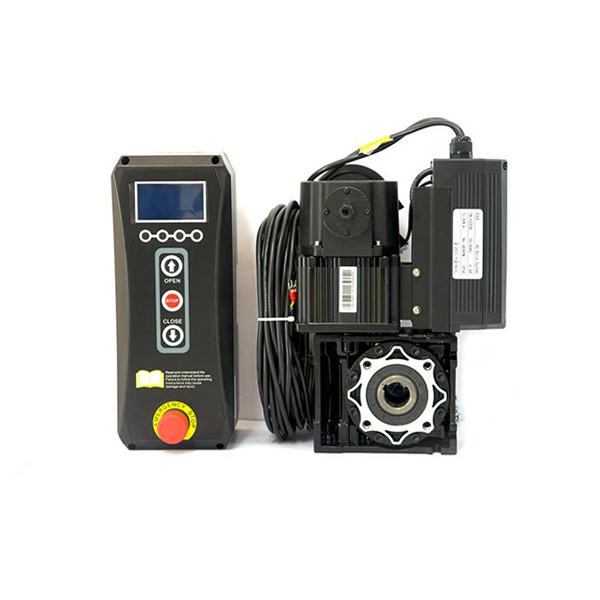

Specification for Controller: |
|
|
Model |
DW4 |
|
Enclosure material |
ABS |
| Dimension(L*W*H) |
303mm x 123mm x 105mm(145mm)(include E-STOP) |
|
Installation method |
Vertical installation without vibration |
|
Power supply |
1N~200-240V |
|
Power frequency |
50/60Hz |
|
Rate output power |
1.5KW |
|
External power supply |
12VDC 0.4A |
|
Ambient temperature |
-20℃～+50℃ |
|
Storage temperature |
-25℃～+55℃ |
|
Ambient humidity |
30%-85%, No condensation |
|
Place of use |
Indoor, no direct sunlight, no dust, corrosive gas, oil mist, water vater vapor, etc |
|
Weight(net) |
1.0Kg |
|
Specification for Motor: |
|
| Model | C60 |
|
Rated speed |
40rpm |
|
Rated torque |
60Nm |
| Power supply |
1N~AC200-240V |
| Power frequency | 50/60Hz |
| Power current | 6.5A |
|
Ambient temperature |
-20℃～+50℃ |
|
Storage temperature |
-25℃～+55℃ |
|
Ambient humidity |
30%-85%, No condensation |
|
IPdegree |
IP54 |
|
Limit mode |
Absolute encoder |
|
Self-locking mode |
Gear self-braking |
|
Manual release |
Rapid hand chain |
|
Weight(net) |
12Kg ¹⁾ |
1)Weight includes 8 meter hand chain.
