Sectional Door Motor & Controller | C120 | POWEVER

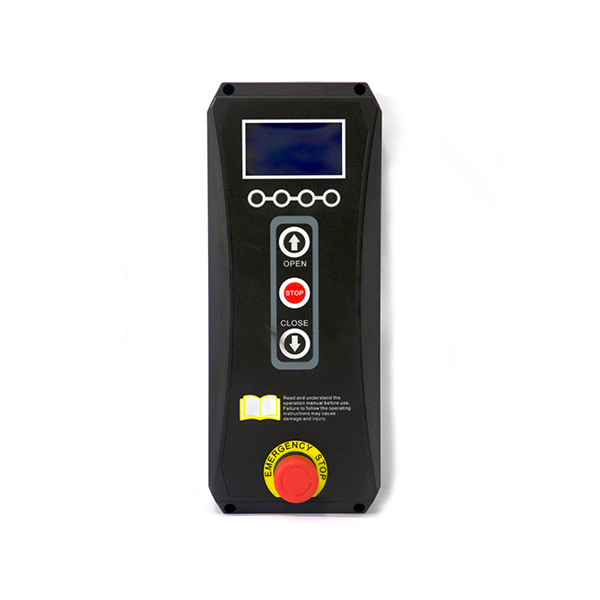

Specification for Controller:
Model	DW4
Enclosure material	ABS
*Dimension(LWH)*	303mm x 123mm x 105mm(145mm)(include E-STOP)
Installation method	Vertical installation without vibration
Power supply	1N~200-240V
Power frequency	50/60Hz
Rate output power	1.5KW
External power supply	12VDC 13A
Ambient temperature	-20℃～+50℃
Storage temperature	-25℃～+55℃
Ambient humidity	30%-85%, No condensation
Place of use	Indoor, no direct sunlight, no dust, corrosive gas, oil mist, water vater vapor, etc
Weight(net)	16KGS

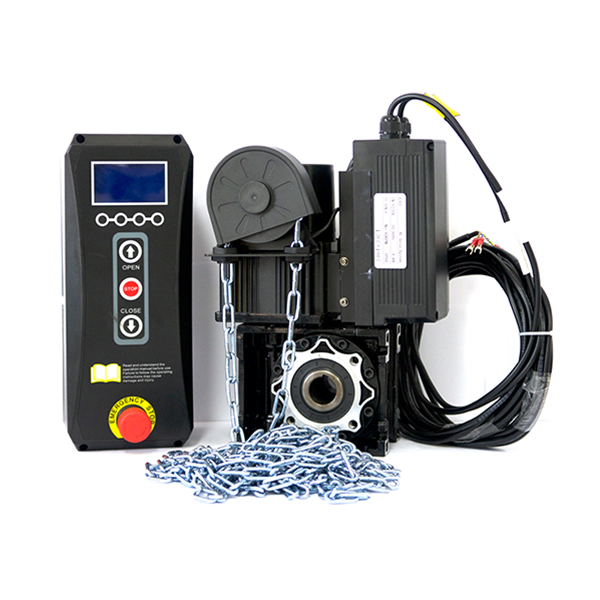

Specification for Motor:
Model	C120
Rated speed	30 rpm
Rated torque	120Nm
Power supply	1N~AC200-240V
Power frequency	50/60Hz
Power current	13A
Ambient temperature	-20℃～+50℃
Storage temperature	-25℃～+55℃
Ambient humidity	30%-85%, No condensation
IPdegree	IP54
Limit mode	Absolute encoder
Self-locking mode	Gear self-braking
Manual release	Rapid hand chain
Weight(net)	16KGS
